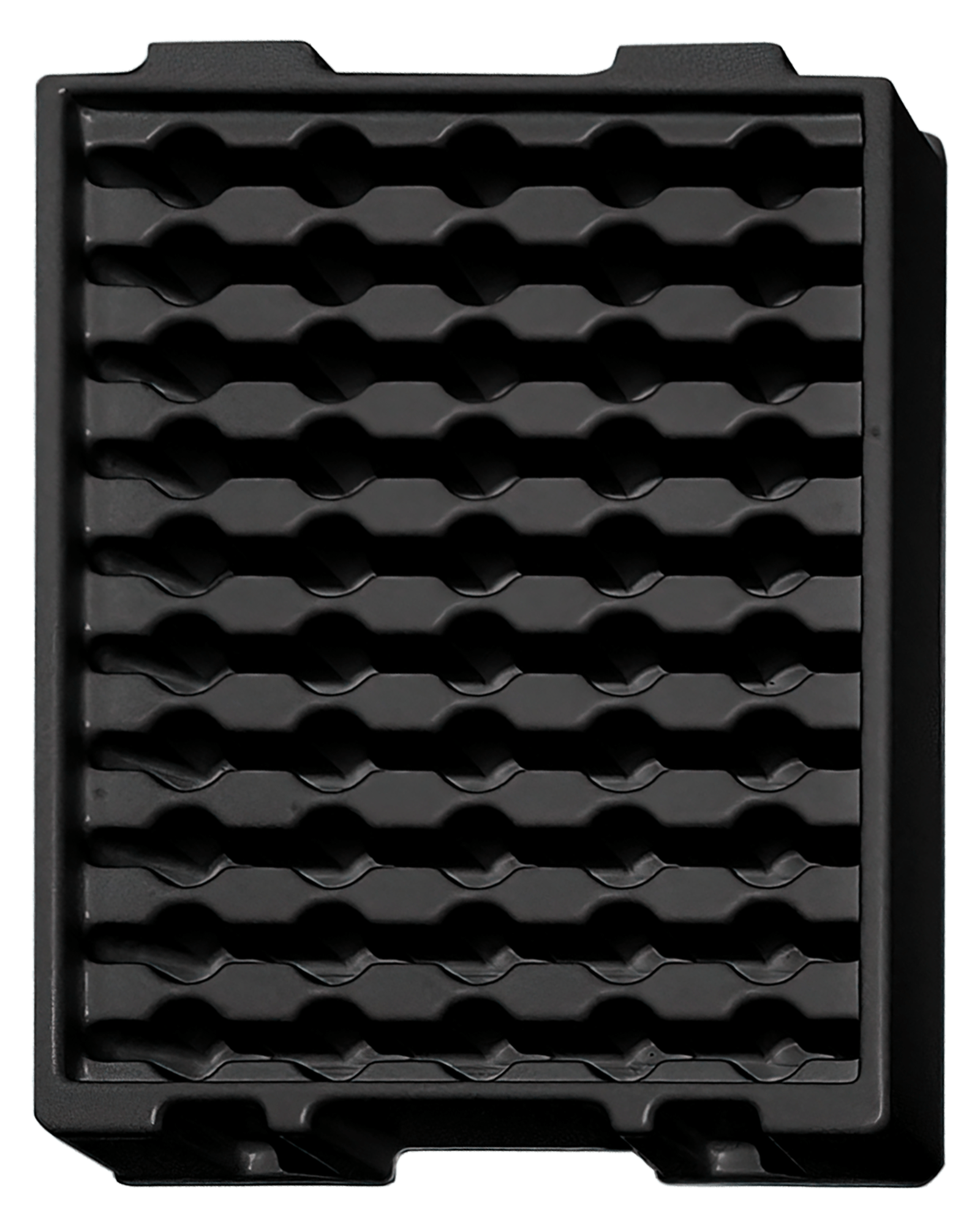

ESD inlay black, 50 round cavities, 330 x 243 mm

Available from 50 pieces – ideal for small load carriers & Euro containers

Technical data

Item No.: 3394370
External Dimensions (LxWxH): 330 x 243 x 55 mm
ESD Resistant: Yes
Number of Cavities: 50
Cavity shape: Round
Compartment Dimensions: 22 x 22 x 50 mm
Color: black
Material: Dissipative polystyrene
Material thickness: 3 mm
Recessed grips: Yes
Stackable: No
Temperature range: -10 °C to +80 °C

pcs

Product description

High-quality ESD thermoformed insert made of Dissipative polystyrene, black

This black, ESD-safe thermoformed insert made of Dissipative polystyrene, measuring 330 x 243 x 55 mm with a material thickness of 3 mm, reliably protects sensitive components. Electrostatic charges are safely dissipated (resistance ≥ 10⁴ to < 10¹¹ ohms). The standard insert is available from 50 pieces, and we provide samples on request.

Standard thermoformed insert with 50 cavities, round

This insert has 50 round cavities. They hold round or cylindrical components such as seals, caps or small turned parts. The precise fit prevents slipping and ensures safe, space-saving storage. Standard trays and standard inserts with round cavities are ideal wherever an orderly arrangement of components matters, for example in series production or transport with a lot of movement.

Black ESD insert made of Dissipative polystyrene with ergonomic recessed grips

Recessed grips on standard trays and inserts make them easy to handle – from order picking through to transport.

Black ESD insert for small load carriers and Euro containers

Cardboard boxes and small load carriers (KLT) are commonly used in industry as outer packaging or load carriers. Our ESD thermoformed insert with 50 cavities in black can also be stacked freely on a wooden or plastic Euro pallet, which increases flexibility in storage and transport.

Customisation options for our black ESD thermoformed inserts

We can have the black ESD thermoformed insert measuring 330 x 243 mm printed individually on request. We also offer a full service for individual requirements for your small load carrier insert, including additional inlays in the cavities made of PE or PU foam, which can be individually punched, formed and cut.
