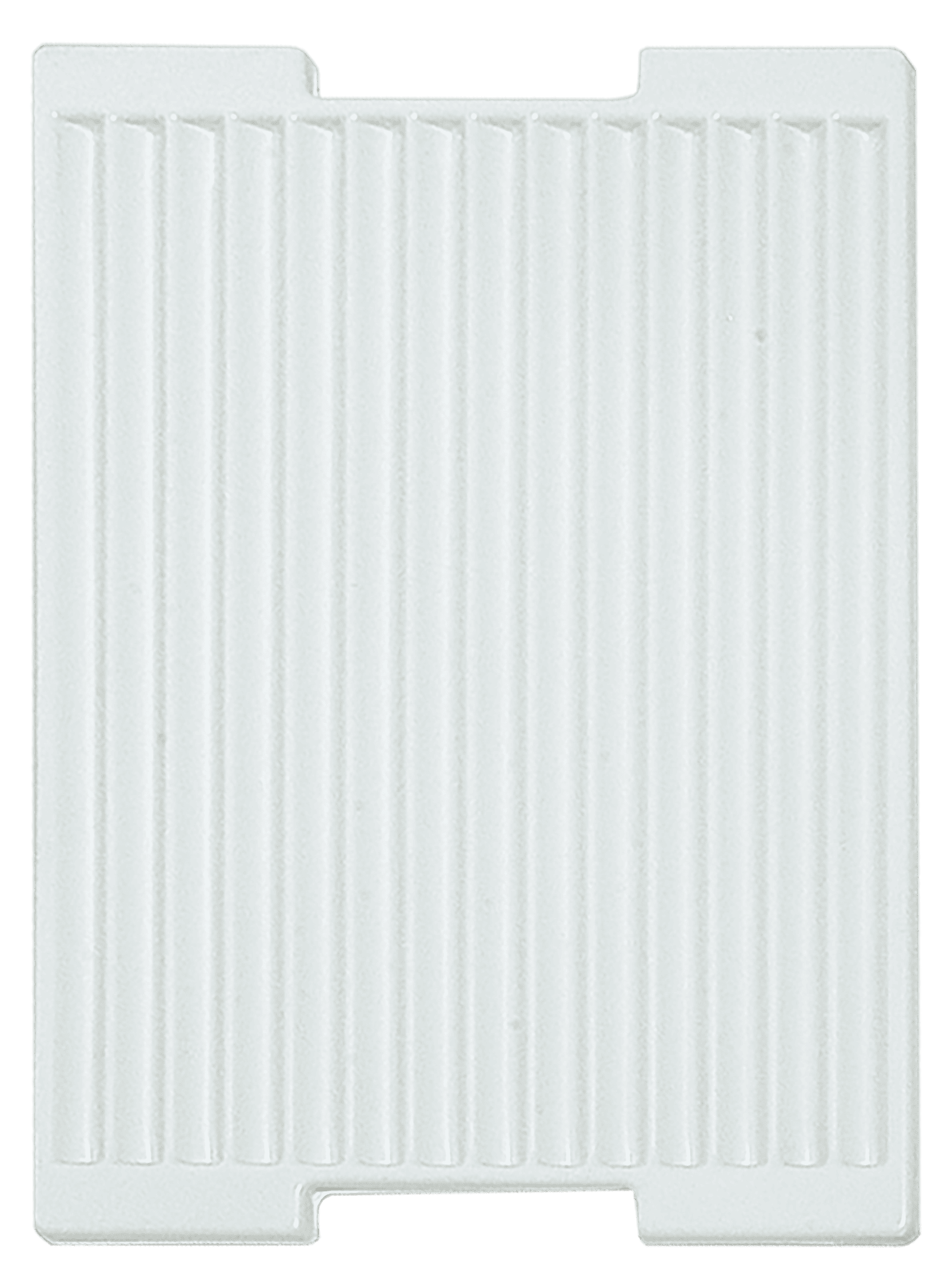

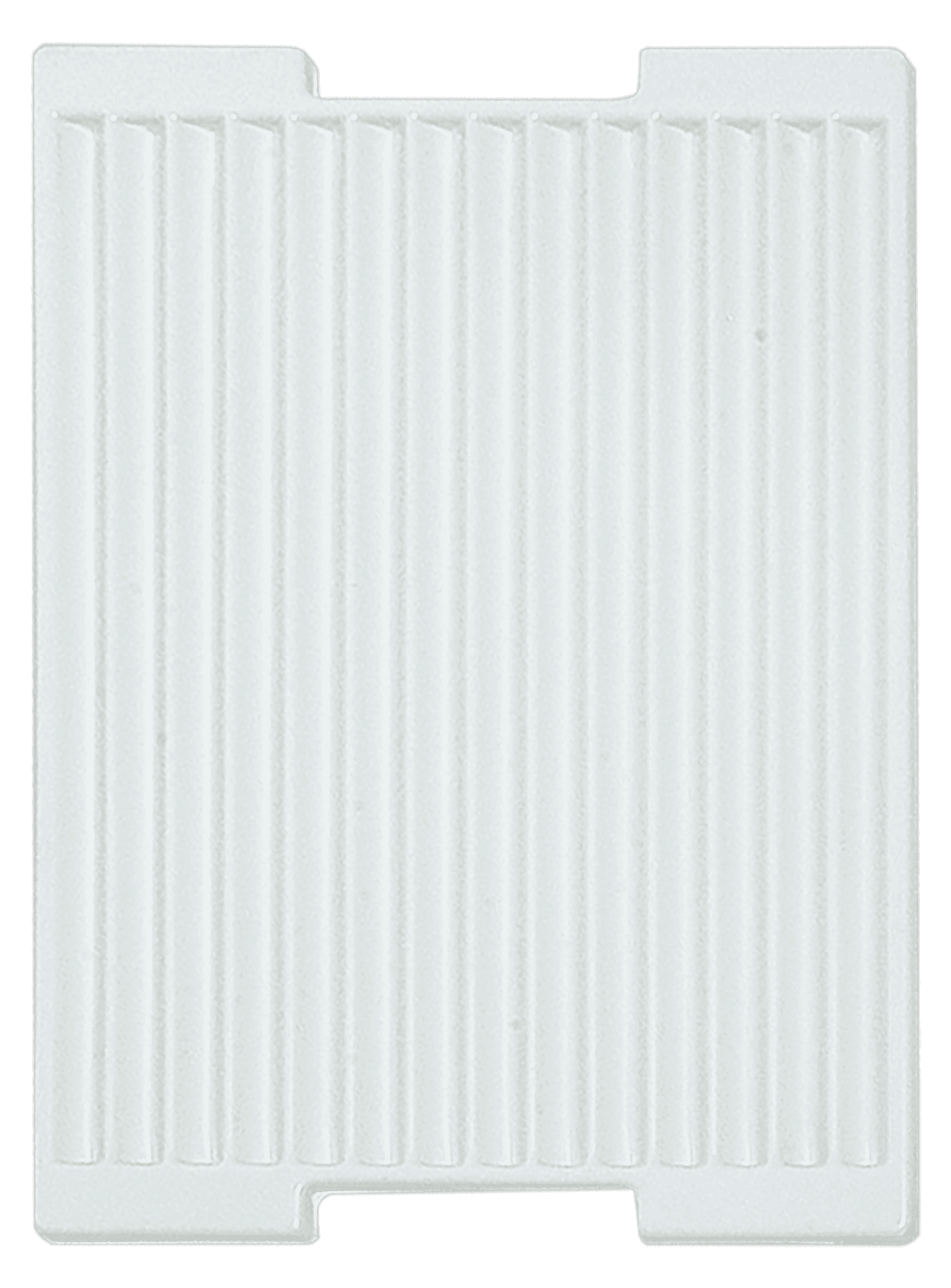

Thermoformed inlay white, 14 grooves, PS

Available from 10 pieces – ideal for small load carriers & Euro containers

Technical data

Item No.: 3394325
External Dimensions (LxWxH): 352 x 252 x 10 mm
ESD Resistant: No
Number of Cavities: 14
Cavity shape: Grooves
Compartment Dimensions: 300 x 16 x 16 mm
Color: white
Material: Polystyrene
Material thickness: 1 mm
Recessed grips: Yes
Stackable: No
Temperature range: -10 °C to +80 °C

pcs

Product description

High-quality thermoformed insert made of Polystyrene, white

This white standard thermoformed insert made of Polystyrene, measuring 352 x 252 x 10 mm with a material thickness of 1 mm, is suited to safely storing and transporting individual components. It withstands temperatures from -10 °C to +80 °C, is cost-effective and available from stock. Small quantities are possible from 10 pieces. We are happy to send samples of our standard trays and inserts on request.

Standard thermoformed insert with 14 cavities, grooved

This insert has 14 grooves and is ideal for elongated components. The grooves hold parts securely, prevent them from slipping and protect them from damage in transit. They are particularly practical for components that have to be stored in a fixed orientation, so sensitive parts stay reliably in position even under movement or vibration.

White plastic thermoformed insert made of Polystyrene with recessed grips

The ergonomic recessed grips make the standard thermoformed insert with 14 cavities easier to handle, which suits fast working processes in intralogistics.

White standard tray for small load carriers and Euro containers

Cardboard boxes and small load carriers (KLT) are commonly used in industry as outer packaging or load carriers. Our thermoformed insert with 14 cavities in white can also be stacked freely on a wooden or plastic Euro pallet, which increases flexibility in storage and transport.

Customisation options for our white standard inserts

The thermoformed insert with 14 cavities in white can be printed individually on request, for example to identify and sort components (pad printing, screen printing, digital printing). That ensures complete component traceability and high transparency in storage. We also offer a full service for individual requirements, including additional inlays in the cavities made of PE or PU foam, which can be individually punched, formed and cut.
