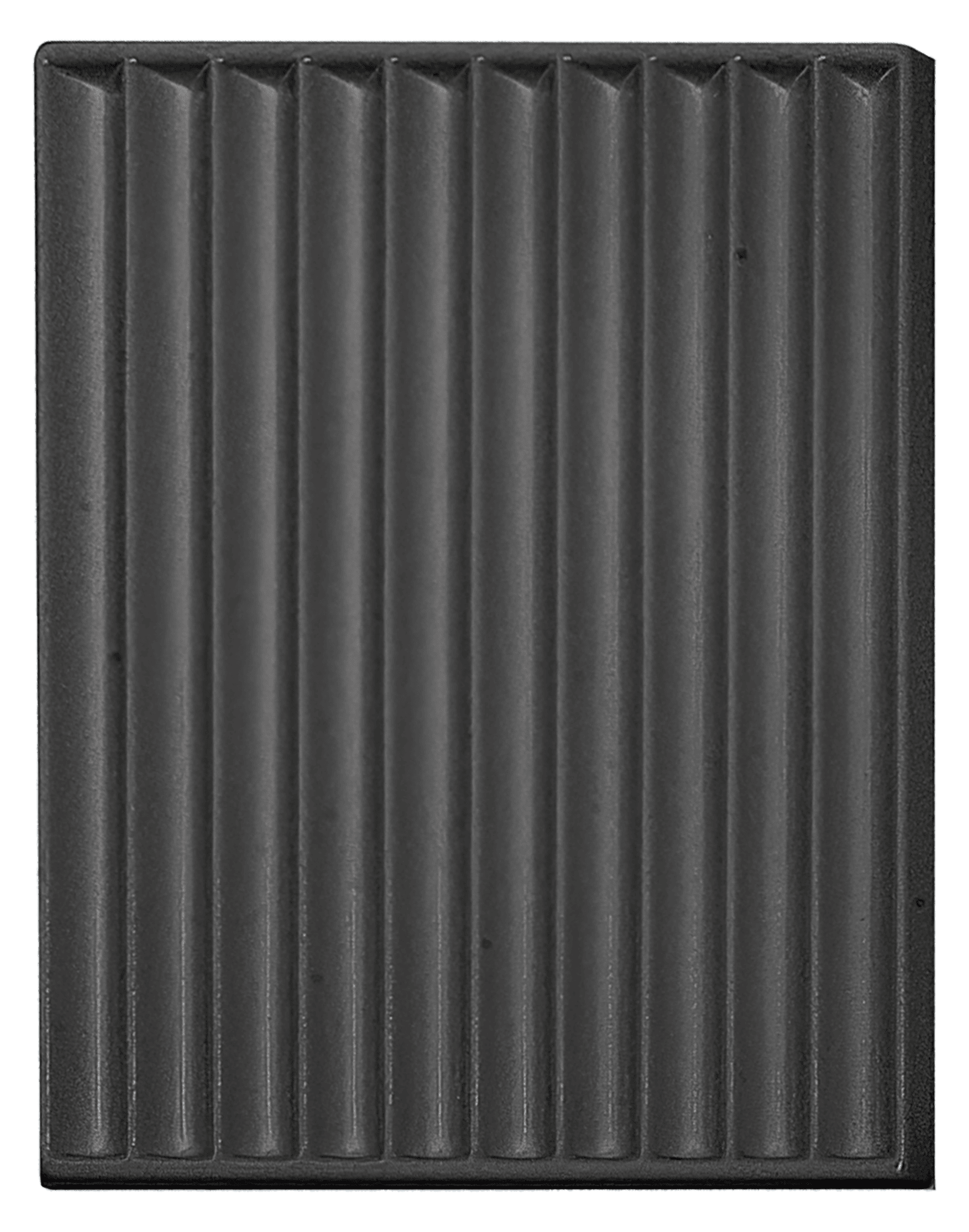

ESD-Tiefzieheinlage schwarz, 10 Rillen, PS

ESD thermoformed inlay black, 10 grooves, PS

Available from 50 pieces – ideal for small load carriers & Euro containers

Technical data

Item No.: 3394324
External Dimensions (LxWxH): 340 x 250 x 12 mm
ESD Resistant: Yes
Number of Cavities: 10
Cavity shape: Grooves
Compartment Dimensions: 315 x 23 x 23 mm
Color: black
Material: Dissipative polystyrene
Material thickness: 1 mm
Recessed grips: No
Stackable: No
Temperature range: -10 °C to +80 °C

pcs

Product description

High-quality ESD thermoformed insert made of Dissipative polystyrene, black

This black, ESD-safe thermoformed insert made of Dissipative polystyrene, measuring 340 x 250 x 12 mm with a material thickness of 1 mm, reliably protects sensitive components. Electrostatic charges are safely dissipated (resistance ≥ 10⁴ to < 10¹¹ ohms). The standard insert is available from 50 pieces, and we provide samples on request.

Standard thermoformed insert with 10 cavities, grooved

This insert has 10 grooves and is ideal for elongated components. The grooves hold parts securely, prevent them from slipping and protect them from damage in transit. They are particularly practical for components that have to be stored in a fixed orientation, so sensitive parts stay reliably in position even under movement or vibration.

Black ESD insert for small load carriers and Euro containers

Cardboard boxes and small load carriers (KLT) are commonly used in industry as outer packaging or load carriers. Our ESD thermoformed insert with 10 cavities in black can also be stacked freely on a wooden or plastic Euro pallet, which increases flexibility in storage and transport.

Customisation options for our black ESD thermoformed inserts

We can have the black ESD thermoformed insert measuring 340 x 250 mm printed individually on request. We also offer a full service for individual requirements for your small load carrier insert, including additional inlays in the cavities made of PE or PU foam, which can be individually punched, formed and cut.
