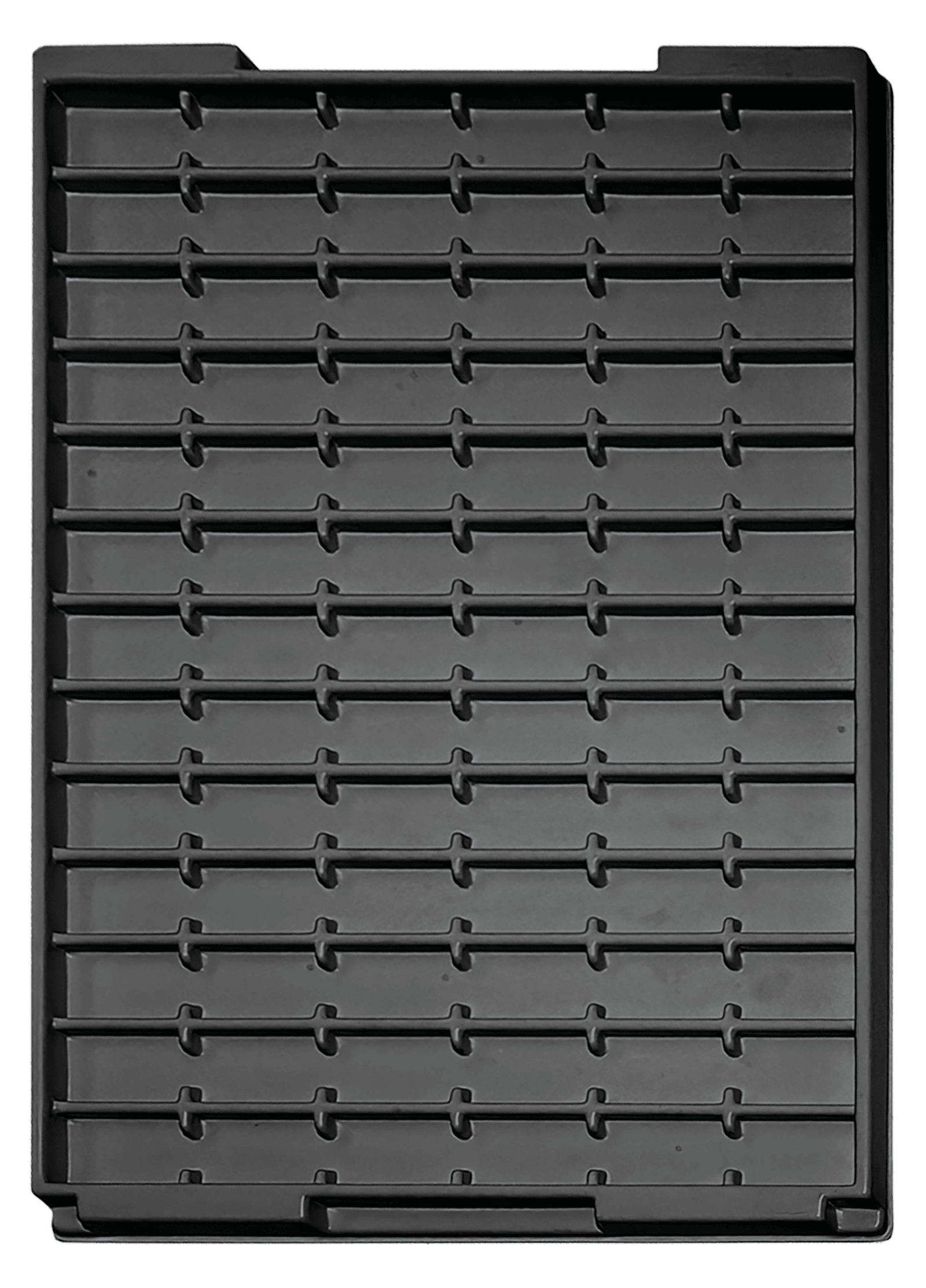

ESD-Tiefzieheinlage schwarz, 78 Nester rechteckig, PS

ESD inlay black, 78 rectangular cavities, PS

Available from 50 pieces – ideal for small load carriers & Euro containers

Technical data

Item No.: 3394314
External Dimensions (LxWxH): 553 x 353 x 24 mm
ESD Resistant: Yes
Number of Cavities: 78
Cavity shape: Rectangular
Compartment Dimensions: 50 x 31 x 10 mm
Color: black
Material: Dissipative polystyrene
Material thickness: 2 mm
Recessed grips: Yes
Stackable: Yes
Temperature range: -10 °C to +80 °C

pcs

Product description

High-quality ESD thermoformed insert made of Dissipative polystyrene, black

This black, ESD-safe thermoformed insert made of Dissipative polystyrene, measuring 553 x 353 x 24 mm with a material thickness of 2 mm, reliably protects sensitive components. Electrostatic charges are safely dissipated (resistance ≥ 10⁴ to < 10¹¹ ohms). The standard insert is available from 50 pieces, and we provide samples on request.

Standard thermoformed insert with 78 cavities, rectangular

This insert has 78 rectangular cavities. They hold angular or edged components securely and make removal and insertion easier. The rectangular compartments make optimal use of the surface and allow an orderly arrangement of parts. Standard thermoformed inserts and standard trays with rectangular cavities are particularly suited to assembly and series production processes, as they stabilise components reliably and protect them from impact.

Stackable ESD thermoformed insert, 553 x 353 mm

This black standardised ESD thermoformed insert with 78 rectangular cavities can be stored using either A/B stacking or reversible stacking. That makes it space-saving and efficient in transit.

Black ESD insert made of Dissipative polystyrene with ergonomic recessed grips

Recessed grips on standard trays and inserts make them easy to handle – from order picking through to transport.

Black ESD insert for small load carriers and Euro containers

Cardboard boxes and small load carriers (KLT) are commonly used in industry as outer packaging or load carriers. Our ESD thermoformed insert with 78 cavities in black can also be stacked freely on a wooden or plastic Euro pallet, which increases flexibility in storage and transport.

Customisation options for our black ESD thermoformed inserts

We can have the black ESD thermoformed insert measuring 553 x 353 mm printed individually on request. We also offer a full service for individual requirements for your small load carrier insert, including additional inlays in the cavities made of PE or PU foam, which can be individually punched, formed and cut.
